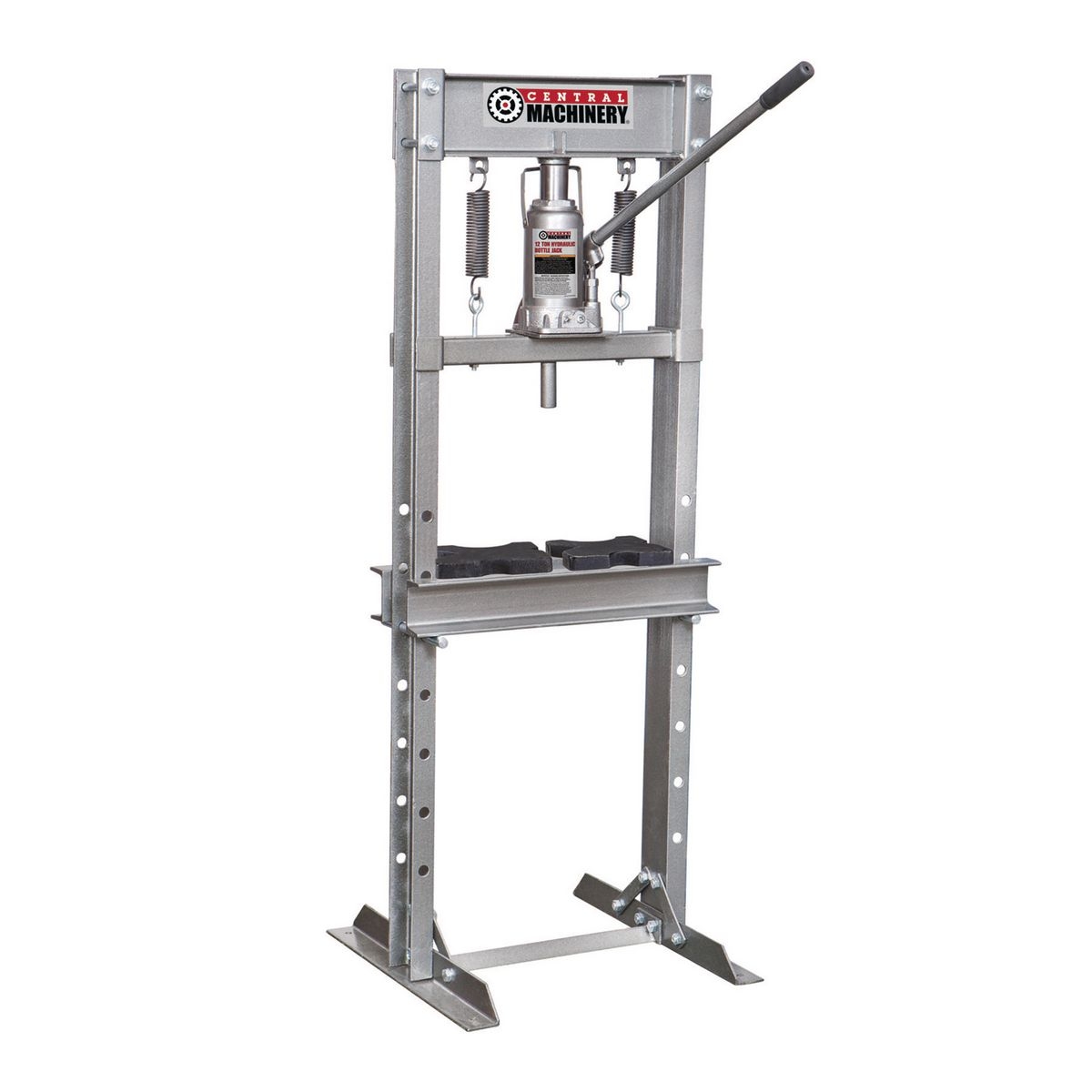

CENTRAL MACHINERY 12 ton H-Frame Floor Shop Press - Item 33497 / 60604 / 85657 / 87740
CENTRAL MACHINERY 12 ton H-Frame Floor Shop Press – Item 33497 / 60604 / 85657 / 87740
Remove and install bearings, bushings, gears, ball joints, U-joints, pulleys, etc. You’ll be able to create substantial pressure for your arbor and press-out jobs, with little effort. H-frame shop press can be used for electric motor and armature repair, installation and removal of pressure-fitted parts, and bending or straightening of metal.
| SKU(s) | 33497, 60604 |
| Brand | CENTRAL MACHINERY |
| Accessories Included | Arbor plates |
| Capacity | 16-3/8 in. |
| Material | Steel |
| Maximum working distance (in.) | 25-1/2 in. |
| Maximum Working load (lbs.) | 24,000 lb. |
| Minimum working distance (in.) | 1-3/4 in. |
| Product Height | 53 in. |
| Product Length | 19-1/2 in. |
| Product Weight | 102 lb. |
| Product Width | 19-1/2 in. |
| Shipping Weight | 106.37 lb. |
| Size(s) | 12 ton |
| Travel length (in.) | 4-3/4 in. |
| Width between channels (in.) | 17 in. |
| UPC | 792363334976, 792363606042 |
